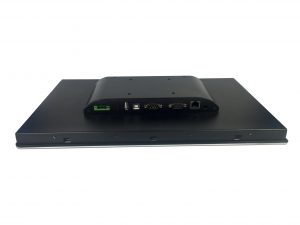

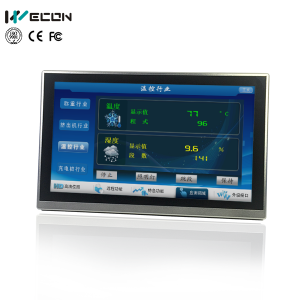

PI9120: 12″ Web-based HMI (Discontinued)

Main Features:

  • 12″ TFT Touch Screen
  • CORTEX A9 1.4GHZ CPU 4 Core
  • 1920*1080 in resolution
  • maximum 5 COM Channels for RS232/RS485/RS422
  • 4GB flash + 512MB RAM
  • ETHERNET port
  • Optional USB WIFI support
  • IP Camera support and cloud-based remote access
  • Script support for simple computation and background timers
  • Data retention in case of restart and power failure.
  • Remote access and control via Internet or LAN on PC and smart devices
  • Easy configuration to work with all brands of PLC through MODBUS and other protocols

Buy Now:

Relevant Downloads:

Sample Projects, Codes and Tutorials:

It’s never been easier to take matter into your own hands and develop your own program now with WECON’s help. Trust WECON and make sure you won’t get dragged into the bottomless pit of putting in more and more money each year to simply accommodate to new changes that you can’t avoid.

Once considered impractical for applications requiring responsive animation and real-time control, our web-based HMI system, equipped with Could Technology in the background, can deliver sub-second response, rich animation and natural integration with other parts of the corporate information infrastructure. Unlike traditional systems, these web-based systems can economically be extended to every aspect of a business such as QC, maintenance, logistics, plant manager, and so forth. Now every participant in the manufacturing cycle can have unprecedented access to vital plant production information.

WECON has two series of HMI screens. Levi Series is the classic series that features essential only functions, no-frills design. PI Series, adopting latest technical development, was designed for now and also for the future. With a better display and faster CPU on the outside compared to Levi, the new PI Series has more focus on overall performance than just lower prices. Its software platform, PI Studio, is designed from scratch with flexibility and reliability as top priorities.

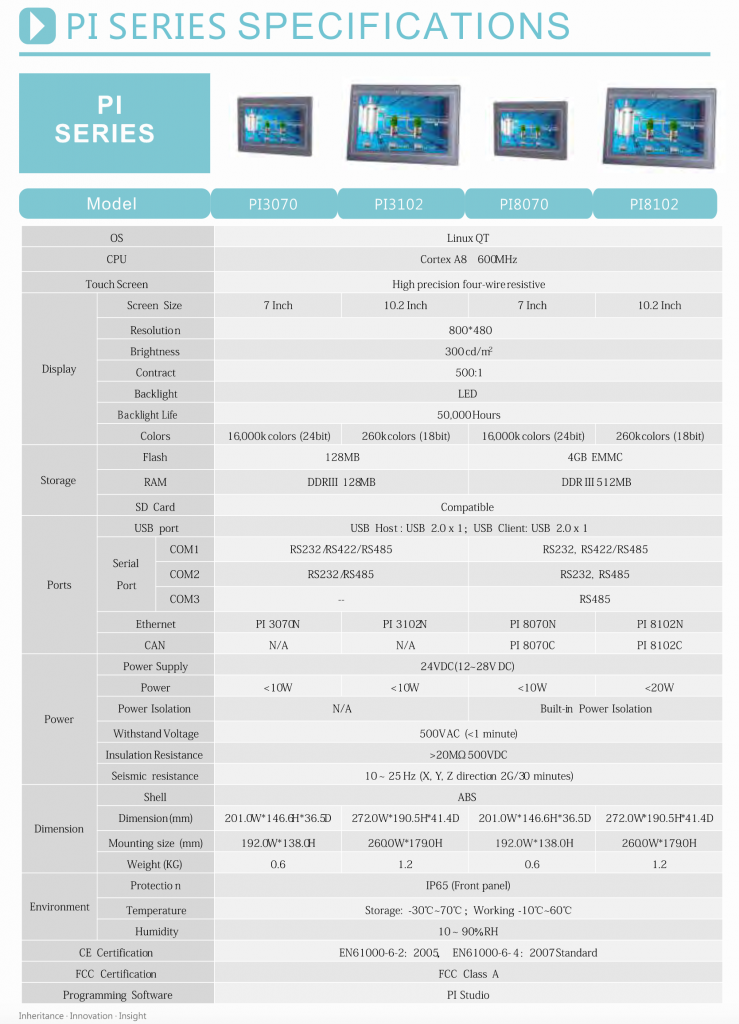

PI Series’ is categorized into three sub series, with PI3000 at the low-end for cost-sensitive customers, PI9000 being the high end for customers valuing overall experience, and PI8000 targeting the middle ground.

PI Studio is the easy-to-use proprietary IDE for screens of PI Series, with which it’s basically just a drag and drop job to build your own interactive applications. PI Studio has in-built support for Modbus, CAN, and most of the communication protocols for talking to major PLC players’ products. You can also use your own protocol if you so wish.

Web-based HMI Screens – PI Series, adopting latest technical development, was designed for now and the future. With a better display and faster CPU, more memory and internal storage on the outside compared to classic Levi Series, the new PI Series has more focus on overall performance than just lower prices. Its software platform, PI Studio, is designed and built from scratch with flexibility and reliability as top priorities.

Web-based design means you can bring the interactive screens you’ve created with PI Studio to your PCs, your smart phones and tablets, and you can operate on these devices from anywhere in the world as exactly you are operating on the HMI screen, as long as you have these devices connected to your HMI device via Local Network/Internet over WIFI/cable. Access on iPhone/Android phones via Internet requires a non-free subscription to cloud-based platform service. Without this subscription, you can still gain access on your smart phones or PCs via Local Network(LAN) on web browsers.

As WECON goes all out to make it possible for customers with or without programming experiences to use the IDE without much of a learning curve, we strongly encourage all our customers try to develop their own applications so that any modifications can be easily done at any time required. We have Software Engineers ready to assist in solving any problems you might come across. But if you really don’t want to spend time in it, both WECON and us can do the job for you at a low rate.

PI 8000 and PI 9000 support cloud-based remote access, which means, with no development required, you can monitor and control your devices through internet on your smart phones (Android and IPhone), tablets and computers. It’s a subscription based service provided by Wecon through its cloud platform.

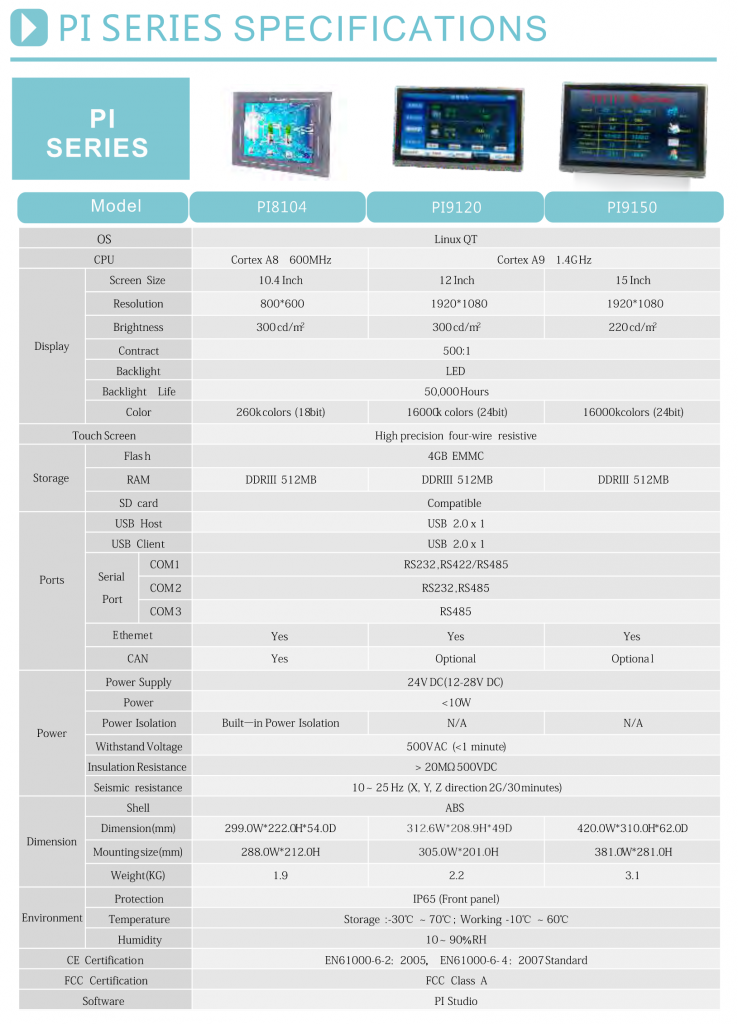

DISPLAY

Size

12″

Resolution

1920*1080

Brightness

300 nits

Contrast Ratio

500:1

Backlighting

LED

Backlight Life Expectancy

50,000 hrs

Colors

16million

MEMORY

Flash

4GB

RAM

DDRIII 512M

RTC

256KB

SD Card Slot

Yes

I/O

USB

USB Host USB 2.0 x 1, USB Client USB 2.0 x 1

Printer Port

Serial

Serial COM1

RS232/RS422/RS485

Serial COM2

RS232/RS422/RS485

Serial COM3

N/A

Ethernet

YES

CAN

WIFI

N/A

Optional

POWER SUPPLY

Power Fail Tolerance

< 5ms

Input

24V DC(12~28V DC)

Wattage

<20W

Power Isolation

N/A

Breakdown Voltage

500V AC within less than 1min

Insulation Resistance

over 20MΩ 500VDC

Vibration Testing

10 ~ 25 Hz (2G/30mins)

ENVIRONMENT

Cooling Method

Natural

Protection Class

IP65

Storage Temperature

-30 ~ 70℃

Operating Temperature

-10℃ ~ 60℃

Operating Humidity

10 ~ 90%RH

BODY SPECS

Body Material

Aluminum alloy front panel, metal case

Outside Dimensions(mm)

312.6W*208.9H*49D

Cavity Dimensions(mm)

Weight(KG)

306.0*202.0 mm

2.2

CERTIFICATES

CE

EN61000-6-2: 2005, EN61000-6- 4:2007

FCC

FCC Class A
