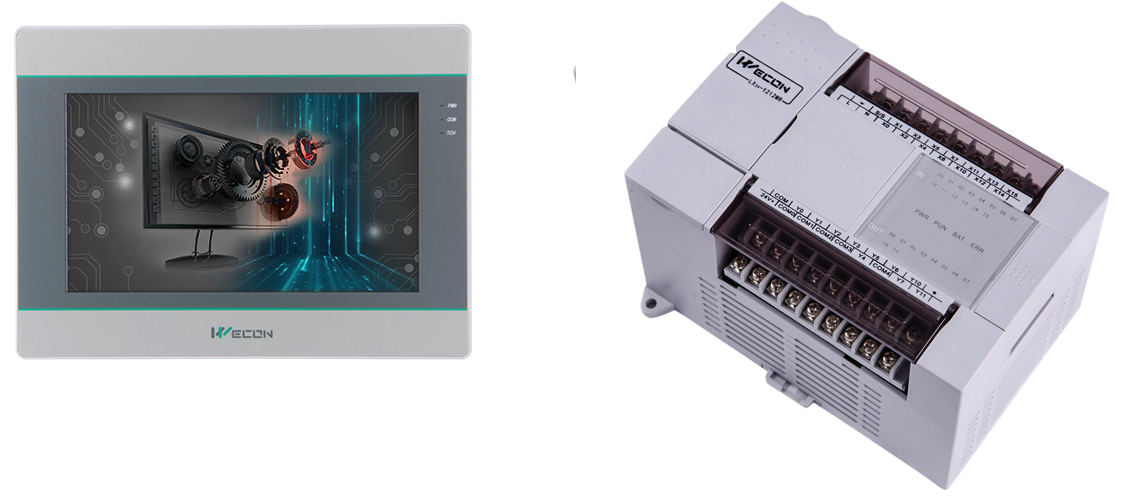

Main Features:
- All HMI screens from ig Series are IIoT ready with "MQTT service" and "HTTPS request" service supported via Lua Script.
- Alarm notifications via Email.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- 4G and WIFI are available as an option.
- CAN Bus is available as an option.
- Programming service is available at a fee.
Available upgrades through options include:
1. Expansion modules for extra digital inputs/outputs.
2. Expansion modules for analogue inputs/outputs (4-20mA or 0-10V).
3. Ethernet support for PLC through expansion card.
4. Expansion modules to support load cell for weighing.
5. Expansion modules for temperature measuring and control with PID.
6. More features for motor control and motion control.
Comparison of Four Series of PLCs:
|
|
LX3V |
LX3VP |
LX3VE |
LX3VM |
|
N:N Networking |
NO |
YES |
YES |
YES |
|
4-axis High-speed Pulse Generating |
2*200 khz 2*100 khz Altogether must be less than 400 khz |
4*200 khz |
4*200 khz |
4*200 khz |
|
Ladder Programming Memory |
16k |
64K |
32k |
32K |
|
S-Curve |
NO |
NO |
YES |
YES |
|
Jitter pulse |
NO |
NO |
YES |
YES |
|
E-Cam |
NO |
NO |
YES |
YES |
|
Circular Interpolation |
NO |
NO |
NO |
YES( same as G-Code, M-Code) |
