Comparison of WECON 4 Series of PLCs:
| LX3V | LX3VP | LX5V (Motor and Motion Control) | LX5S | |
|---|---|---|---|---|
| Power Supply | 24VDC or 240VAC | 24VDC or 240VAC | 240VAC | 24VDC |
| Programming Memory | 16k | 64K | 512KB or 384K(With Ethernet Port) | 512KB or 384K(With Ethernet Port) |
| Command Execution Time | 06.0us | 06.0us | 0.01-0.03us | 0.03-0.08us |
| Output Type | Transistor or Relay Or Mixed | Transistor or Relay Or Mixed | Transistor | Transistor or Relay Or Mixed |
| Serial Ports | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485. More RS485 via Expansion. | 1 RS422/RS485, 1 RS485. |
| N:N Network | N/A | YES | YES | YES |
| CAN Bus | N/A | Optional for some models, CAN Open DS301 V4.02, PI8000 HMIs Support CAN Bus | NO | |
| High Speed Counter | 2 | 2 | 8 | |
| High-speed Pulse Outputs | 2*200 khz 2*100 khz Altogether must be less than 400 khz | 4*200 khz | Model 1412 has 4. Others 8 * 200 khz | 2*200 khz |
| S-Curve In Accel & Deccel | N/A | N/A | YES | YES |
| Jerk pulse | N/A | N/A | YES | YES |
| E-Cam | N/A | N/A | YES | YES |
| Manual Pulse Generator | N/A | N/A | YES | YES |
| Circular/Linear Interpolation | N/A | N/A | YES | YES |
| MODBUS Tabular Setting (RSLIST) | N/A | YES | YES | YES |
| Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet |
In Wecon’s PLC world, LX3V is the basic model. LX3VP takes a step higher in terms of specifications, and LX3VE/LX3VM targets customers with more advanced motion control, such as CNC devices. On top of LX3V, LX3VP supports up to 64k steps of ladder program, PLC networking for as many as 8 PLCs, up to 4 channels of high-speed pulse output with frequency to 200K, Core encryption, PID.
Our PLC adopts a modular design so that you only need to buy what you need, with no money wasted. For weighing, temperature measuring, Analog to Digital, Digital to Analog, PID Control etc etc, please refer to Extension Modules and clip-on Expansion Cards.
It’s never been easier to take matter into your own hands and develop your own program now with WECON’s help. Trust WECON and make sure you won’t get dragged into the bottomless pit of putting in more and more money each year to simply accommodate to new changes that you can’t avoid. Click here to download latest PLC Editor and get it started, be assured that you don’t need to have any prior experience.

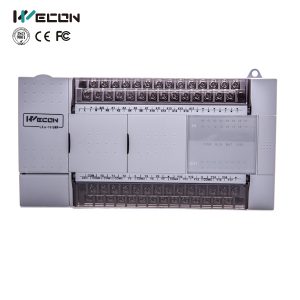

With LX3VP, you can choose sub-models with input/output numbers ranging from 12/8 to 36/24 to accommodate different project scales and requirements.
For every sub-model, there’s the choice of AC power supply(85-265V) or DC power supply(24V), also the choice of relay or transistor output card, or mixed card with two channels of transistor, the rest being relay.

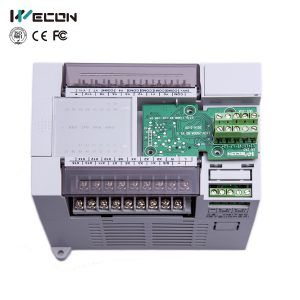

While all sub-models support one or two clip-on BD boards, sub-models with 12 outputs and more can also support as many as 16 extension modules to enhance its capacity and capabilities.
All sub-models include two channel of high-speed counting. Sub-models with mixed outputs and transistor outputs have 2 or 4 channels of high-speed pulse outputs, depending on its model number.
All sub-models have two COM ports, with one dedicated to HMI connection, another one for other RS485/RS422/RS232 communication requirements.
WECON PLC Editor is the proprietary IDE for you develop your own logic or code to run on LX3VP PLC. As WECON goes all out to make it possible for customers with or without programming experiences to use the IDE without much of a learning curve, we strongly encourage all our customers try to develop their own applications so that any modifications can be easily done at any time required. We have Software Engineers ready to assist in solving any problems you might come across. But if you really don’t want to spend time in it, both WECON and us can do the job for you at a low rate.
PLC of LX3VP, LX3VE, LX3VM models support N:N Networking:
