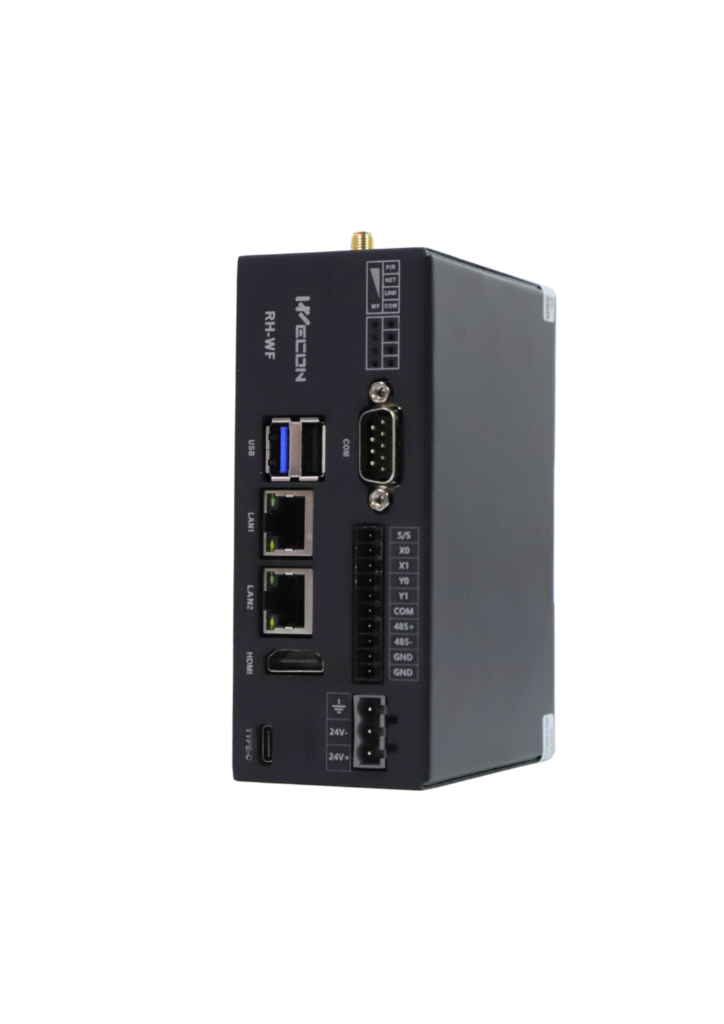

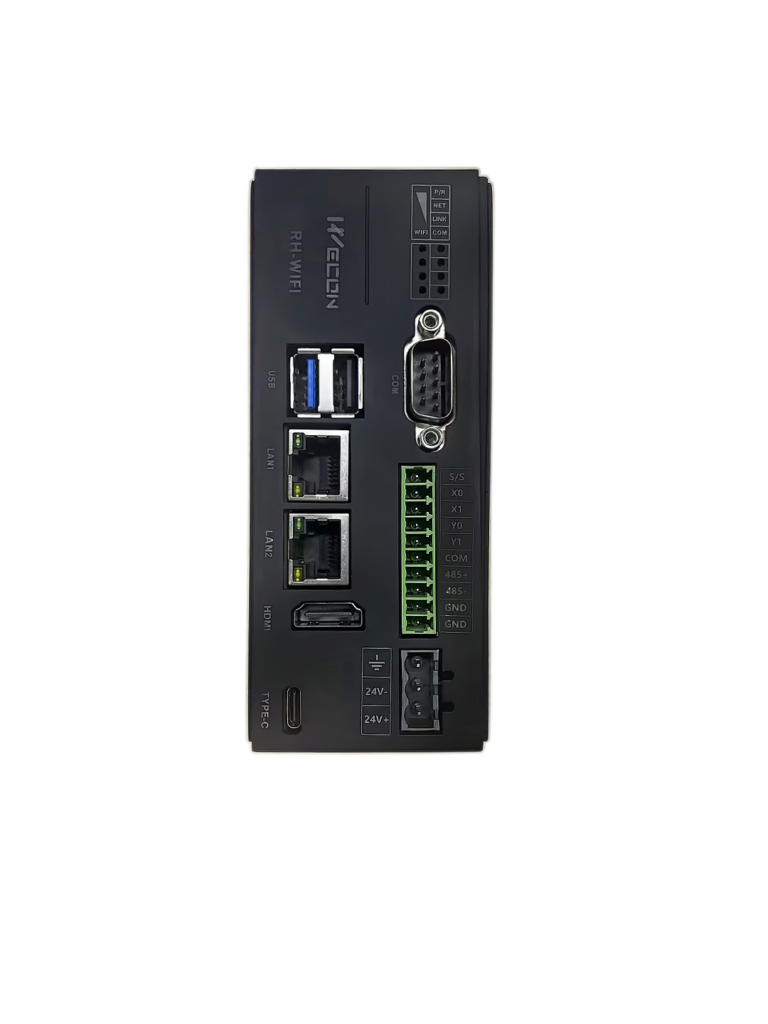

VBox RH Series
Features:
- 2GB DDR3 RAM. 4 Core CPU
- 8GB eMMC for local storage in addition to cloud storage. SD Card support for storage expansion.
- HDMI V2.0 port for TV and other big screens. Resolution max at 1920*1080. HDMI hub supported for multiple screens. Operable on external touch screens.
- Web Browser (Chrome, FireFox, Edge) Access Within LAN.
- RTSP local camera support.
- PI Studio for programming, with free-tag, Codesys V3.0 protocol and other main PLC native protocols support.
- FTP for data files download.
- OPC UA support.
- V-NET For Cloud Storage and Cloud HMI, Remote control over Internet on mobile phones.
- 2 DI and 2 DO for physical button, switches and firing off alarms.
- 1 * USB-C, 2 * USB 2.0 for USB keyboard and mouse support.
- 2 * Ethernet Port. Optional WIFI 802.11 b/g/n.
- 2 * RS485, 1 * RS422, 1 * RS232.
- 1 * HDMI for external monitor (up to 1920 * 1080). Touch screen operable.
- USB mouse and keyboard to control external monitor locally
Software Tools:
- VBox Configuration App For PC
- VBox Configuration Site via HTTP
- VBox Open Cloud Site
- VBox Configuration App for iPhone – Search “V-Box” in Apple Store
- VBox Configuration App for Android (V2.0.3 09/04/2021)
- OPCTool: OPC Server connection agent (Release Date: 30/03/2021 V1.0_180714)
- VBox VPN client
Documents:
- VBox Data Sheet
- VBOX Configuration manual via HTTP
- VBOX Configuration manual via PC
- VBOX Lua script programming manual
- VBOX VPN setup manual
- VBOX Web HMI builder manual
- VBOX Online FAQ
- VBOX Online manuals
- VBOX Online Demo Videos
Videos:
- PLC program can be remotely uploaded and updated through V-Box, find out how.
- VBOX Online Demo Videos
- VBox data configuration.
| Cloud Storage | E-00 | H-00 | H-WIFI | H-4G | RH |
|---|---|---|---|---|---|
| Live Data Points | 200 | 300 | 300 | 600 | 300 |
| History Data Points | 20 | 50 | 50 | 100 | 100 |
| Alarm Data Points | 50 | 200 | 200 | 300 | 200 |
| Data Retention Time | 60 days or altogether 1 million | 90 days or altogether 1 million | 90 days or altogether 1 million | 180 days or altogether 1 million | 60 days or altogether 1 million |
| Lua Script Support | No | Yes | Yes | Yes | Yes |
| VPN Server | No | No | Yes | Yes | Yes |
| Serial Port Pass-through | Yes | Yes | Yes | Yes | Yes |
| Interface | 1 * USB, 1 * Ethernet Port, 1 * RS232, 1 * RS422/RS485 | 1 * USB, 2 * Ethernet Ports, 1 * RS232, 1 * RS422/RS485, 2 * RS485 | 1 * USB, 2 * Ethernet Ports, 1 * RS232, 1 * RS422/RS485, 2 * RS485, 1 * WIFI | 1 * USB, 2 * Ethernet Ports, 1 * RS232, 1 * RS422/RS485, 2 * RS485, 1 * 4G | 2 * USB, 1 * USB Type C, 2 * Ethernet Port, 2 * RS485, 1 * RS422/RS485, 1 * RS232, 1 * HDMI 1 * WIFI Optional 1 * 4G Optional |

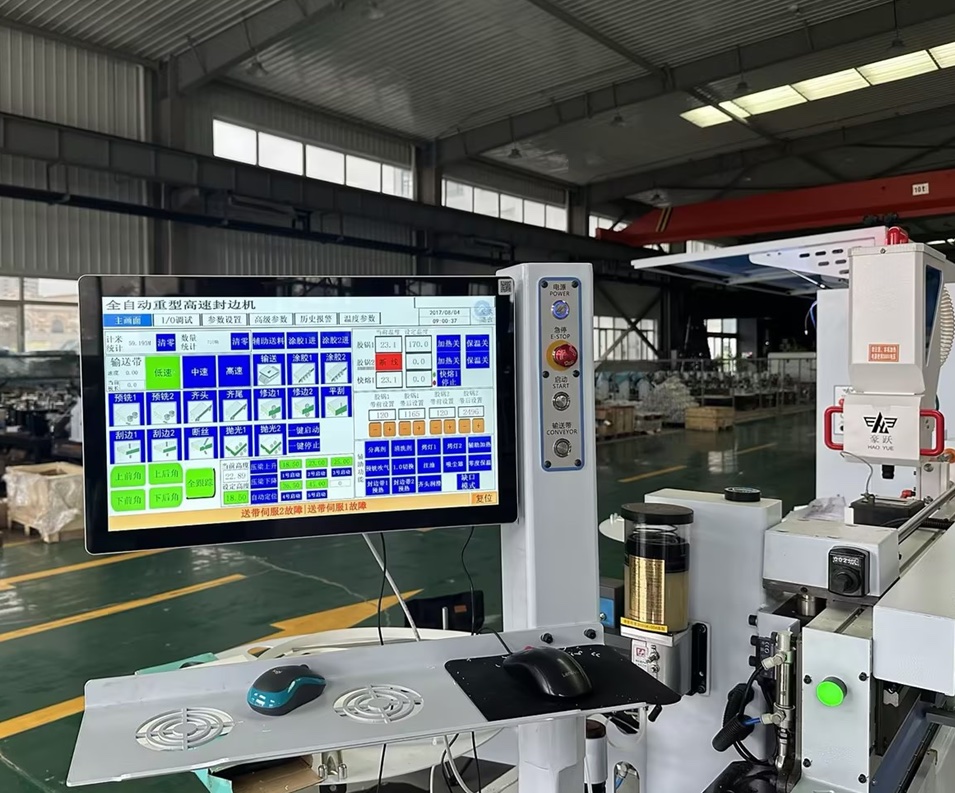

Web HMI demo pictures (contact us for address to log in and see Web HMI in action):
