WP3070 has the following options:
1. on-board WIFI for internet access.
2. On-board 4G for internet access.
3. Remote Control, Cloud Data Storage via our dedicated apps and website.
4. USB drive, but not SD card.
5. All features supported by PI3070ig.

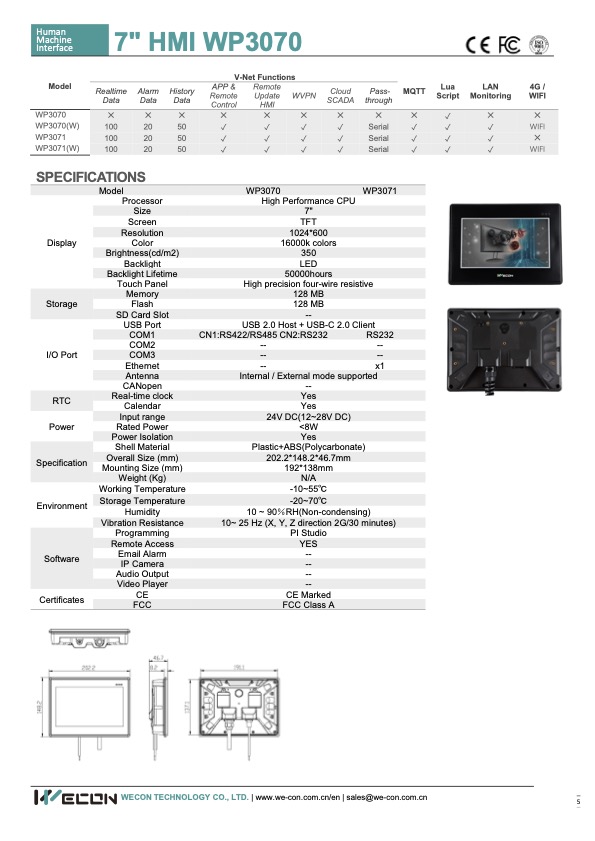

Display & Touchscreen
The WP3070 features a 7-inch TFT colour display with a resolution of 1024×600 and 16,000k colour depth, delivering crisp, clear visuals on the factory floor. With a brightness of 350 cd/m² and a backlight lifetime of 50,000 hours, it is built for continuous 24/7 operation. The high-precision four-wire resistive touch panel ensures reliable input even with gloved hands.Processing & Storage
Driven by a high-performance CPU, the WP3070 comes with 128MB of RAM and 128MB of Flash storage, with an SD card slot for expanded data logging and project storage. A USB 2.0 Host and USB-C 2.0 Client port provide convenient data transfer and project backup.I/O & Connectivity
The WP3070 offers two serial communication ports — COM1 supporting CN1:RS422/RS485 and CN2:RS232, and COM2 supporting RS232 — covering the most common industrial protocols. The antenna supports both internal and external modes, with on-board WiFi for wireless network connectivity and an optional 4G module for mobile internet access in remote or cableless installations.Power
Accepts a wide input voltage range of 24V DC (12–28V DC), with a rated power consumption of under 8W. Built-in power isolation protects your equipment against electrical interference and voltage spikes.Construction & Environment
Housed in a robust Plastic+ABS (Polycarbonate) shell with an overall size of 202.2×148.2×46.7mm and panel cutout of 192×138mm, the WP3070 is engineered to withstand harsh industrial conditions. Operating temperature range is -10°C to 55°C, storage temperature -20°C to 70°C, and humidity tolerance of 10–90% RH (non-condensing). Vibration resistance is rated at 10–25Hz across X, Y, and Z directions at 2G for 30 minutes.Software & Remote Access
Programmed using PI Studio software, the WP3070 supports remote access and email alarm notifications. A real-time clock and calendar are built in for time-stamped data logging and scheduled events.Certifications
CE Marked and FCC Class A certified, ensuring compliance for use in Australia and international markets.
V-Net Cloud Features (WP3070 base model)
The base WP3070 supports Lua scripting, LAN monitoring, and MQTT communication for IoT integration — making it compatible with modern cloud SCADA and Industry 4.0 architectures. Upgrade to the WP3070(W) variant to add full V-Net cloud functions including realtime data, alarm history, APP remote control, remote HMI updates, WVPN, and cloud SCADA.

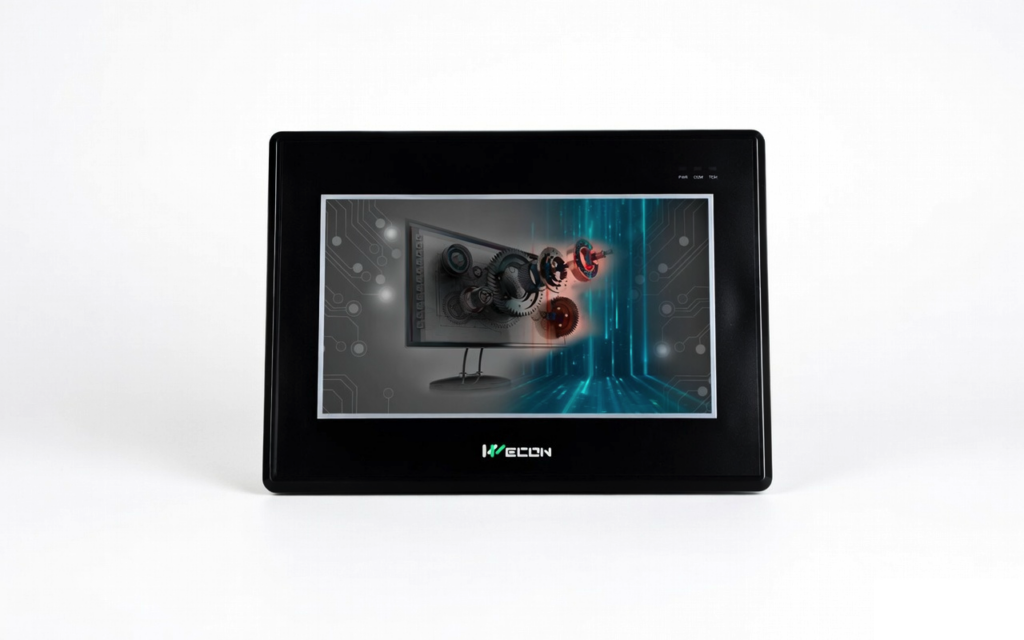

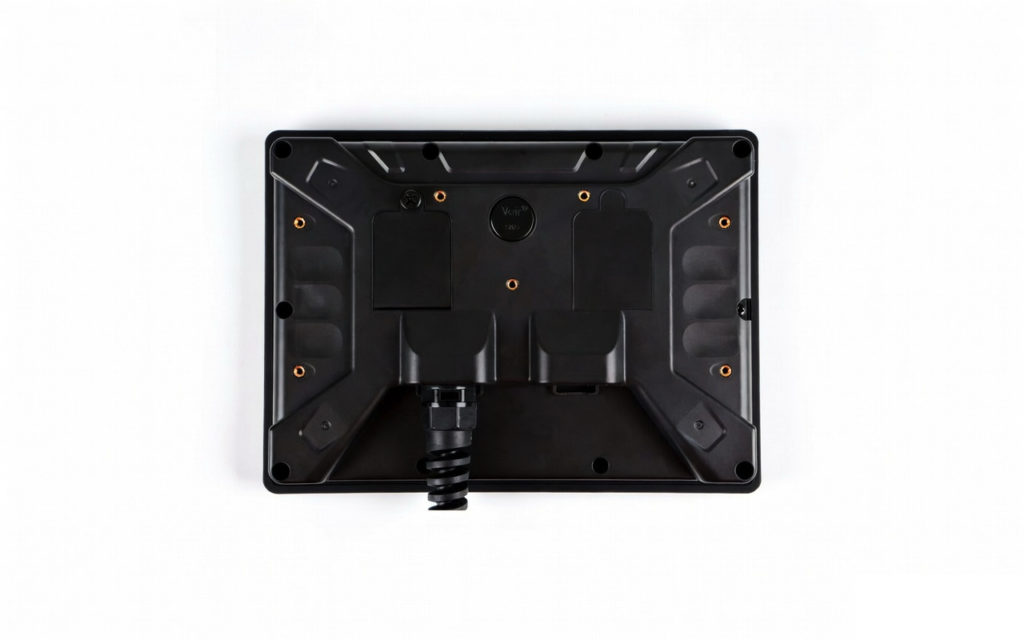

Looking for a waterproof HMI panel? The WP3070 is a 7-inch IP67-rated HMI screen that handles what standard panels can’t — washdowns, splashes, dust-heavy environments, and outdoor installations. Fully sealed to IP67, it survives conditions that would destroy a conventional touchscreen panel.
Connectivity is built in. Choose WiFi or optional 4G to keep your machine online, and use the cloud platform to log data and control your equipment remotely from a smartphone or tablet. Based on the reliable PI3070ig, the WP3070 delivers all the programming flexibility you expect from a modern HMI with the added durability your environment demands.
Available now from JOFAS in Sydney — Australia’s trusted supplier of industrial automation equipment.
