HMI Display with WIFI, 4G
Main Features:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script.
- VPN service is embedded for remotely managing and programming HMIs and PLC devices.
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Email.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.

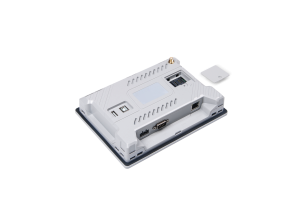

- 4G and WIFI as an option are available.
- CAN Bus is available as an option.
- Programming service is available at a fee.
| Cloud Storage | 15" PI8150-C | 7“/10” ig-C | 7“/10” ig-C WIFI | 7“/10” ig-C 4G |
|---|---|---|---|---|
| Live Data Points | 300 | 100 | 100 | 100 |
| History Data Points | 100 | 50 | 50 | 50 |
| Alarm Data Points | 200 | 20 | 20 | 20 |
| Data Retention Time | 120 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million |
| VPN Service | Yes | Yes | Yes | Yes |
| Serial Port Pass-Thru | Yes | Yes | Yes | Yes |
To buy only this HMI screen:
To buy this HMI screen plus PLC in a combo deal:
Resource links, more on DOWNLOAD page:
- PI Studio Sample Projects
- Free programming software, VB like script and Lua script supported.

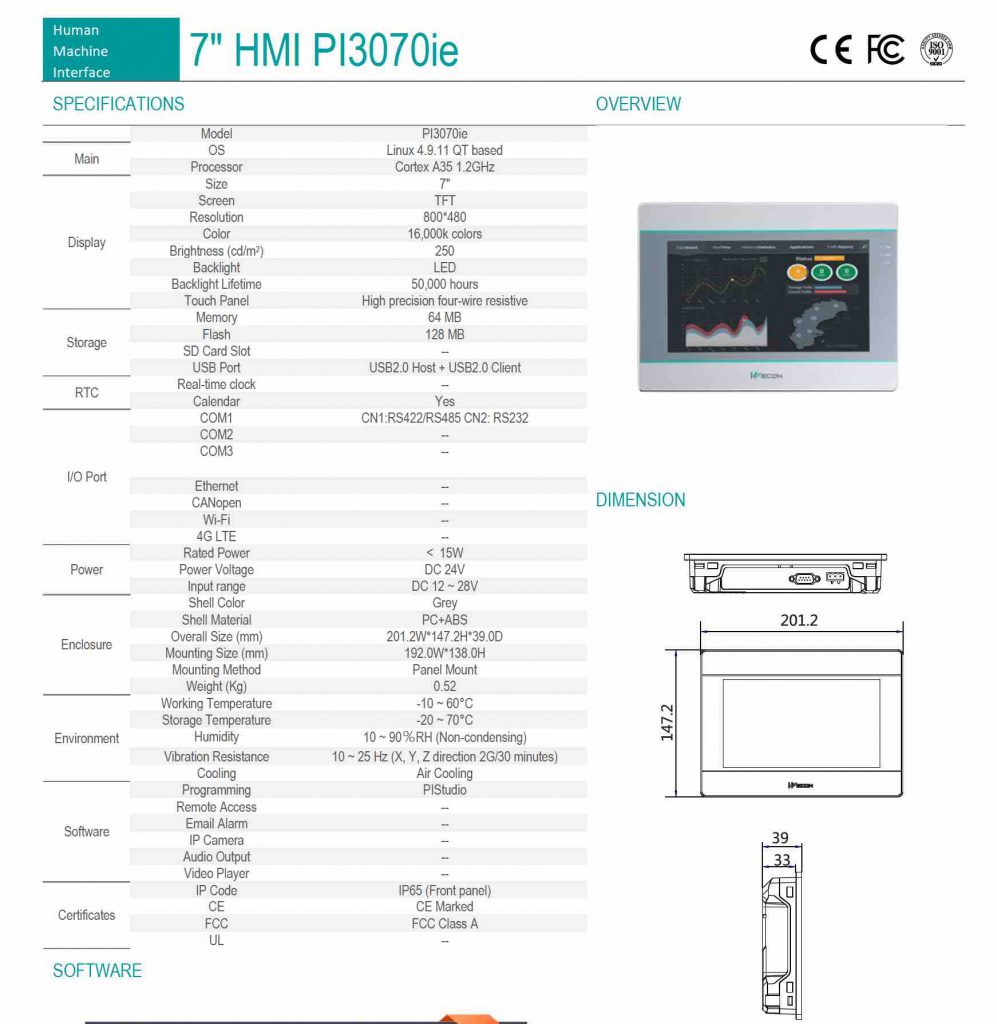

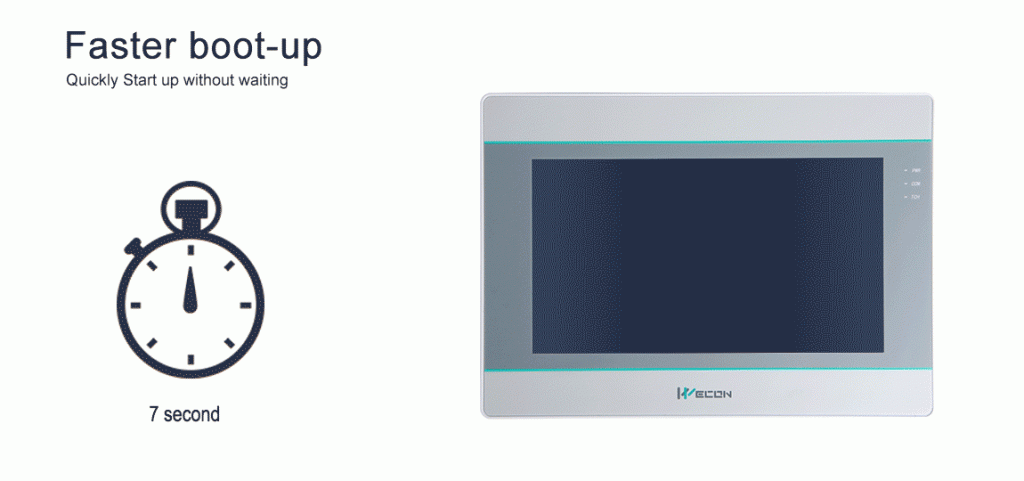

- PI3070ie data sheet, 7s boot up.

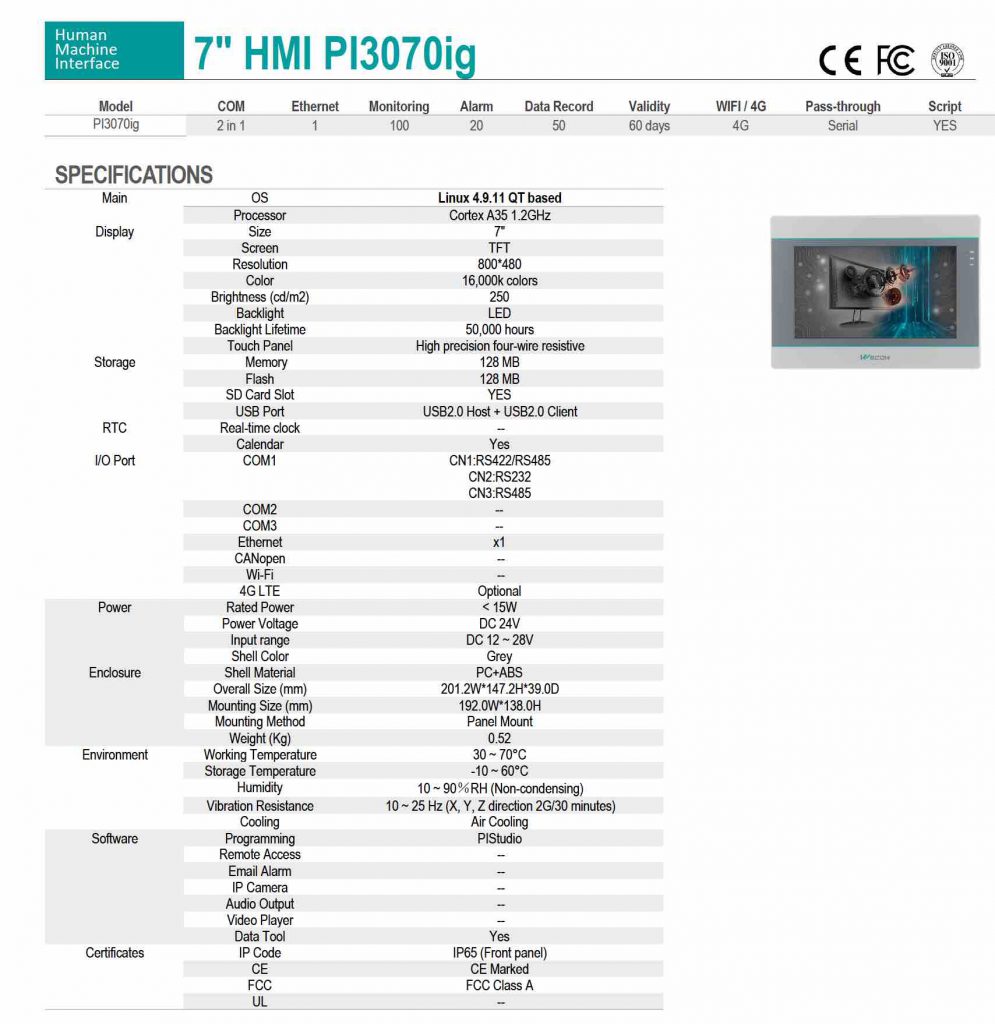

- PI3070ig data sheet, 7s boot up, Optional WIFI, 4G and Remote control
Hardware specs:
Web HMI demo pictures (contact us for address to log in and see Web HMI in action):
