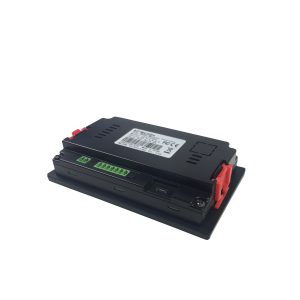

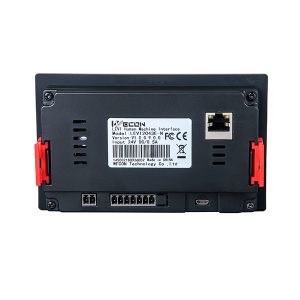

Levi2043E(-N): 4.3″ Touch Screen, Optional Ethernet

Main Features:

  • 4.3″ TFT Touch Screen
  • 32-bits 400MHz RISC
  • 480*272 in resolution
  • 1 Com Port for RS232/RS485/RS422
  • Optional Ethernet Port
  • 142.0W*86.0H*30.0D in dimensions
  • Script support for simple computation and background timers
  • Data retention in case of restart and power failure
  • Easy configuration to work with all brands of PLC through MODBUS and other protocols

Relevant Downloads:

Sample Projects, Codes and Tutorials:

It’s never been easier to take matter into your own hands and develop your own program now with WECON’s help. Trust WECON and make sure you won’t get dragged into the bottomless pit of putting in more and more money each year to simply accommodate to new changes that you can’t avoid. Click here to download latest Levi Studio and get it started, be assured that you don’t need to have any prior experience.

WECON has two series of HMI screens. While PI Series has modern technical development and future applications in mind, Levi Series is the one that features essential only functions, no-frills design and boasts good enough quality while having cheap enough prices.

LeviStudio is the IDE to develop your own applications to run on screens of Levi Series. Although a bit of knowledge in VBA would be helpful, you don’t need to know any programming languages to use LeviStudio in most of the scenarios. LeviStudio has in-built support for Modbus, CAN, and most of the communication protocols for talking to major PLC players’ products. You can also use your own protocol if you so wish.

As WECON goes all out to make it possible for customers with or without programming experiences to use the IDE without much of a learning curve, we strongly encourage all our customers try to develop their own applications so that any modifications can be easily done at any time required. We have Software Engineers ready to assist in solving any problems you might come across. But if you really don’t want to spend time in it, both WECON and us can do the job for you at a low rate.

,
